NO TAX for Hikvision wifi android POE Video intercom monitor 10" DS-KH9510-WTE1

stars, based on 0reviews
$210.00$260.00 piece
100items available
Contact Us

The Hikvision DS-KH9510-WTE1(B) monitor is a 2nd generation indoor intercom station based on the Android operating system enabling intuitive and fully comfortable operation of the video intercom system. The professional hikvision  video monitor allows for a direct video conversation with people at the gate station , viewing from the gate station or IP surveillance cameras and integrating the device with alarm sensors . Another advantage of the unit is the ability to archive audio-video material, the intercom communication function and the availability of many practical solutions that allow you to tailor the system to the user's needs.

Main features of the monitor

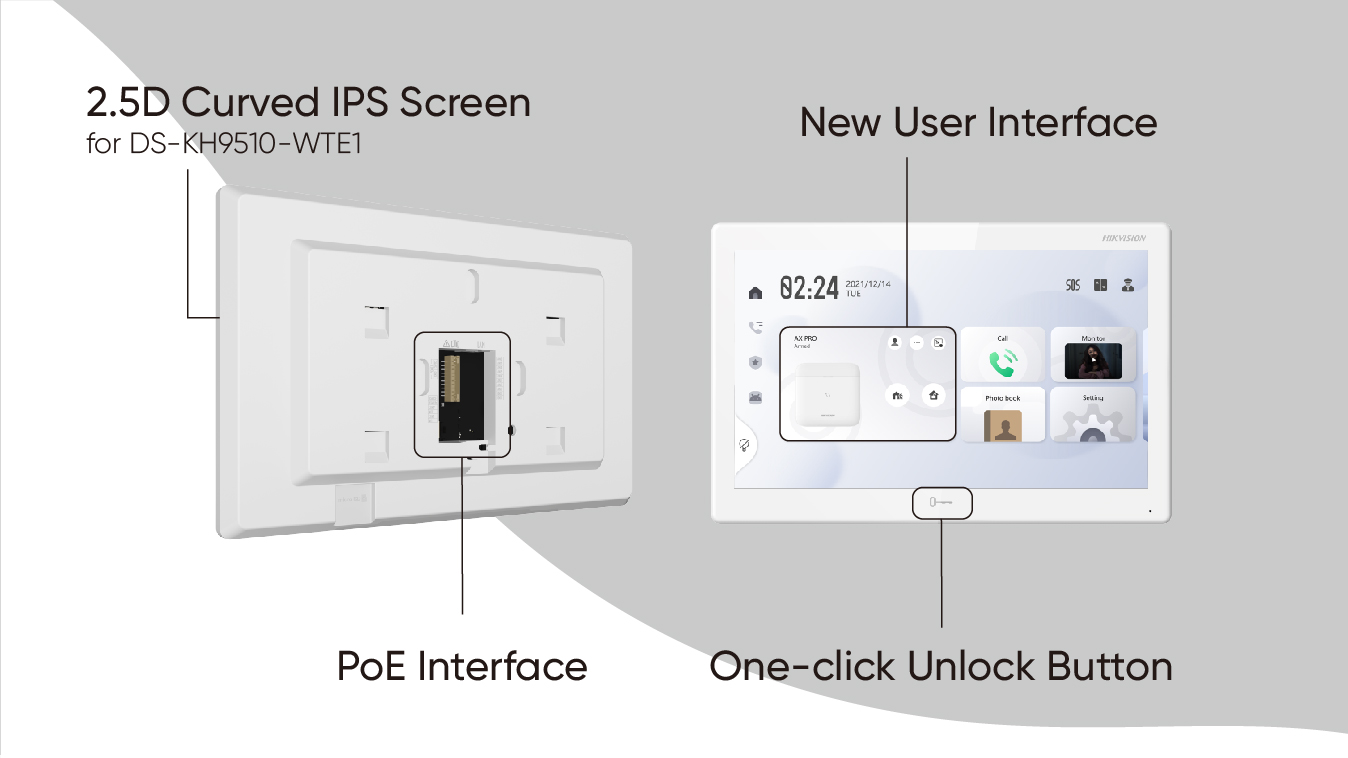

The DS-KH9510-WTE1 (B) monitor is equipped with a 10.1" IPS color touch screen that displays clear and detailed content in a high resolution of 1024x600 pixels . The device is equipped with a modern multi-directional sound recording and projection system. The monitor is controlled via intuitive user interface available and controlled directly from the touch screen. The presented unit has two alarm outputs and eight alarm inputs for integration with the alarm system. The device allows us to receive video calls and remotely unlock the door using client software or a mobile client also the possibility of powering the device using PoE 802.3af technology and a built-in Wi-Fi module for wireless communication. The advantage of the device is the built-in Android operating system and its attractive design that fits perfectly into any household, ultra-thin housing .

Product highlights:

✅ image resolution 1024x600

✅ modern, full touch IPS LCD 10.1" screen

✅ built-in WIFI module

✅ Internal intercom

✅ ability to answer calls remotely and preview using the free Hik-Connect application

✅ Built-in internal memory

✅ Option to expand memory by 32GB using a microSD card, card slot in the monitor housing

✅ ability to open the gate and gate from the monitor and personal phone

✅ modern and timeless design

Technical parameters:

Screen: 10" IPS LCD
Resolution: 1024x600
Control: touch
Operating system: Android
Built-in microphone: Yes
Built-in speaker: Yes
Audio compression: G.711 U
Network interface: Ethernet 10/100Mbps, WiFi 802.11 b/g/n
Network protocols: TCP/IP, SIP, RTSP
Remote operation: Hik-Connect application, iVMS
Alarm inputs: 8
Alarm outputs: 2
SD slot: up to 32Gb
PoE power supply: IEEE802.3af,
Power consumption: <8W
Temp. operation: -10 °C to 50 °C
Dimensions: 254 × 166 × 26.65 mm
Material: polymer
White color

Support Language:

English,Russian,France, Portuguese, Spanish, German, Italian, Polish, Arabic,Hungarian, Dutch,Turkish,Farsi,Romanian, Bulgarian, Czech, Greek, Croatian, Serbian,Vietnamese;

Communicates via WiFi or POE - two connection methods

The supplied Hikvision kit (monitor and gateway station) has 2 built-in network interfaces:

✅POE Ethernet

How to work with full kit

Work with lock

Can work with cctv camera kit

microSD memory card-

supportSD 2.0 card slot

Support in the HikConnect application

The presented set, like all Hikvision IP sets, can be operated via the dedicated Hik-Connect mobile application . Thanks to the application, we can see what is happening in front of our house or talk to the person who visited us in our absence. The application enables m.in. :

remote viewing of the image from the video intercom camera in real time
playback of recordings and notifications
talking to the calling person (eg. courier, guest)
input control
recording the history of events within the system.
The program is adapted to both the Android and iOS operating systems.

Android system

The device is equipped with the Android operating system with the Hik-Connect application installed, which allows connection to all Hikvision devices via Hik-Connect .

The system has a new user interface and allows you to install two additional applications, these may be applications from other manufacturers , e.g. for lighting control . The monitor has 1GB of built-in RAM and an 8GB Emmc disk , which enables smooth use of the device and multimedia recording on the internal memory.


The most important elements of the VTH Dahua monitor

10" LCD display

10" capacitive screen with a resolution of 1024x600px provides a detailed view of the image from the door station.

Touch operation

All settings and management of functions are made via the touch display.

Wireless transmission - WiFi

Thanks to the built-in 2.4GHz Wi-Fi interface (802.11 b/g/n), it enables wireless communication with a camera or router.

Alarm inputs

The available 8 NO/NC inputs allow the user to increase the security potential of the facility by installing alarm sensors (bell operation).

Android system

 The system has a new user interface and allows you to install two additional applications, these may be applications from other manufacturers , e.g. for lighting control .

microSD slot

The VTH monitor has a microSD card slot . Thanks to the memory card, it is possible to store video material, photos and leave audio/video messages. The device supports cards up to 256GB.

12V power output

The monitor is also equipped with a 12V power output to power the alarm sensor.

PoE power supply

The ability to power the device using PoE 802.3af technology is also a great convenience .

Why should you trust us?

Our experts test all the equipment in our stock before providing us with a quote - we check the parameters, quality and functionality of each equipment. We won't sell even the most popular Hikvision products if they have hidden flaws and fail our quality tests. We will never give you a device that stops working after a year of use. We know trust takes a long time to build and we certainly don’t want to let you down.

Additionally, you get real warranty:

✅ Personal technical support from professional experts, such as password retrieval, machine reset, firmware upgrade, monitoring products, access control products, video intercom, and compatible use of alarm products

✅ Easily exchange or return your chosen device if it doesn’t meet your expectations

✅ Up to 36 months manufacturer’s warranty

✅ Each package is protected from mechanical damage
