7" IPS LCD wifi PoE Monitor for Hikvision DS-KH8350-WTE1 IP video intercom

Monitor for Hikvision DS-KH8350-WTE1 IP video intercom

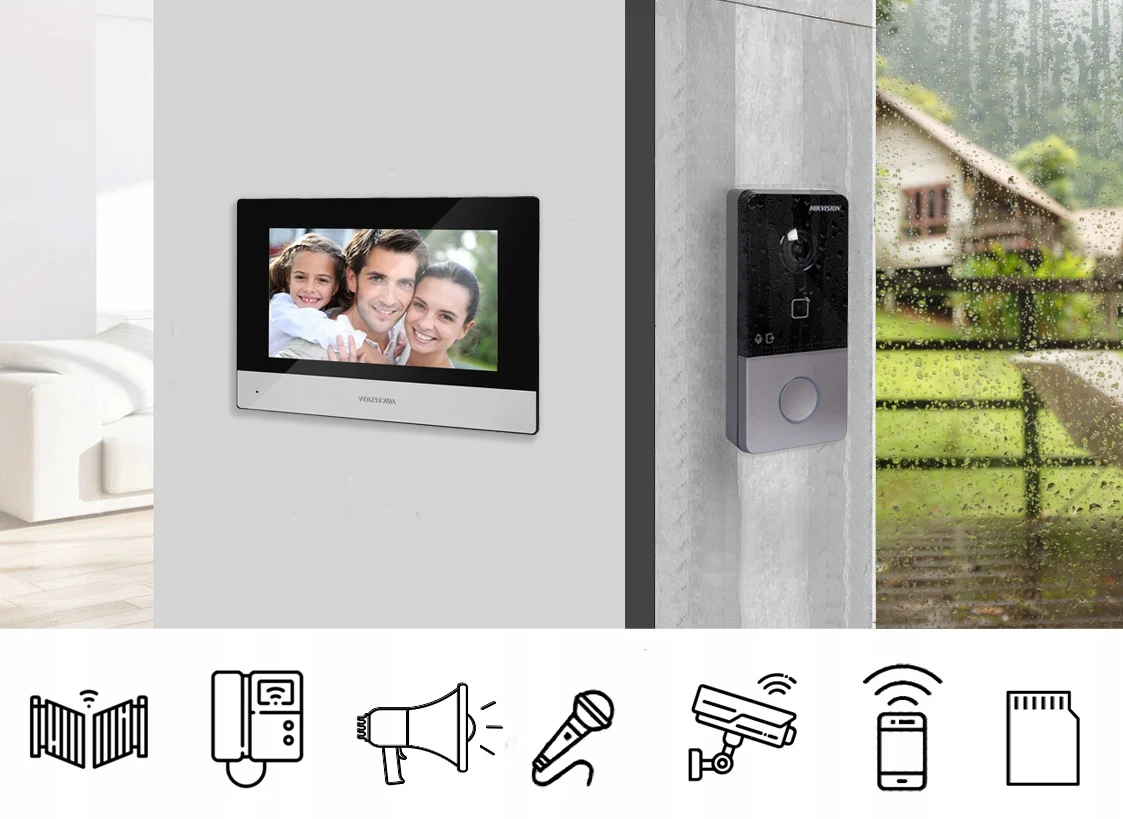

The modern DS-KH8350-WTE1 IP touch monitor of the second generation by Hikvision allows you to communicate and view with people located opposite the door station and cooperate between other monitors in the system. This solution enables communication between tenants located in other rooms or floors. Thanks to the intuitive graphical interface, operation is very simple and does not require technical knowledge.

Hikvision DS-KH8350-WTE1 IP monitor - touch and widescreen LCD screen.

• The DS-KH8350-WTE1 monitor by Hikvision is a 2nd generation indoor intercom station. The monitor allows  communication with an external gate station  and  displaying the image from the  external panel camera.
• The DS-KH8350-WTE1  monitor model has  a mechanical button  that releases the electric strike in the gate.
• The device is equipped with  an SD card slot (max. 32Gb) , thanks to which it is possible  to archive audio-video material .
• The Hikvision video intercom monitor  will ensure the safety of household members and the entire property . It is used in both  single-family and  multi-family systems
•


• Application

  A monitor for controlling an IP video intercom by Hikvision is an ideal device for servicing  single- and multi-family houses . The video intercom system allows you  to talk to people who visit the property and give them  access to the facility . Additionally, the monitor has a  video and audio archiving function , which ensures continuous recording of events. The device is also equipped with a  message leaving function . All these features increase the effectiveness of protection of the property and household members.




  Technical Specifications:

  System:

  • Operating system:  Embedded Linux
  • Built-in memory:  128MB
  • Flash memory:  32 Mb
  • UI:  V2.0 User Friendly

  Screen:

  • Screen diagonal:  7"
  • Resolution:  1024x600
  • Matrix type:  IPS LCD, color
  • Operation mode:  touch (capacitive)

  Audio:

  • Audio input:  Microphone - built-in, omnidirectional
  • Audio output:  Speaker - built-in
  • Audio compression:  G.711U @64 Kbps
  • Additional functions:  Noise reduction, echo cancellation

  Network:

  • Interface:  1x RJ45 10/100 Mbps Ethernet seld-adaptive
  • WiFi Interface:  Built-in WiFi 802.11b/g/n
  • Supported protocols:  TCP/IP、SIP、RTSP
  • Alarm input:  8x alarm input
  • I/O output:  2
  • SD Slot:  Yes, up to 32Gb, SD 2.0 or lower
  • RS-485:  supported

  General:

  • Power supply:  PoE @ IEEE802.3af; 12VDC, 1A
  • Current consumption:  200mA
  • Power consumption:  ≤ 7W
  • Mechanical button  controlling the opening of the gate
  • Temp. operation:  -10 °C to 55°C
  • Humidity:  10% to 90%
  • Dimensions:  180 mm × 140 mm × 22.4 mm
  • Installation:  surface-mounted.
  •

  •

    Communicates via WiFi or twisted pair - two connection methods

    The supplied Hikvision kit (monitor and gateway station) has 2 built-in network interfaces:

    ✅Wi-Fi

    ✅Ethernet

    What does this mean to you? Well, you can connect these two devices:

    ✅Wireless - via WiFi and local power

    ✅Wired - via PoE switch and twisted pair

    This makes this kit perfect for you even if you're not ready to wire it yet!



    Can work with cctv camera kit



    microSD memory card -support

    SD 2.0 card slot



    Support in the HikConnect application

    The presented set, like all Hikvision IP sets, can be operated via the dedicated Hik-Connect mobile application . Thanks to the application, we can see what is happening in front of our house or talk to the person who visited us in our absence. The application enables m.in. :

    remote viewing of the image from the video intercom camera in real time
    playback of recordings and notifications
    talking to the calling person (eg. courier, guest)
    input control
    recording the history of events within the system.
    The program is adapted to both the Android and iOS operating systems.



    Package



    The most important elements of the hikvision monitor

    ---



    7" LCD display

    ---

    7” capacitive screen with a resolution of 1024x600px provides a detailed view of the image from the door station.



    Touch operation

    ---

    All settings and management of functions are made via the touch display.



    Wireless transmission - WiFi

    ---

    Thanks to the built-in 2.4GHz Wi-Fi interface (802.11 b/g/n), it enables wireless communication with a camera or router.



    Alarm inputs

    ---

    The available 6 NO/NC inputs allow the user to increase the security potential of the facility by installing alarm sensors (bell operation).



    microSD slot

    ---

    The monitor has a microSD card slot . Thanks to the memory card, it is possible to store video material, photos and leave audio/video messages. The device supports cards up to 256GB.






    12V power output

    ---

    The  monitor is also equipped with a 12V power output to power the alarm sensor.



    PoE power supply

    ---

    The ability to power the device using PoE 802.3af technology is also a great convenience .




  •
