mutil language Dahua wireless wifi PTZ SD29204UE-G-W 2MP 4X ZOOM Built-in MIC 30M ICR Starlight WDR IVS Face Detect IP Camer
Dahua MINI wifi PTZ 4x optical zoom IR Distance up to 30m SD card memory recorder DH-SD29204S-GN-W SD29204S-GN-W PTZ dome camera

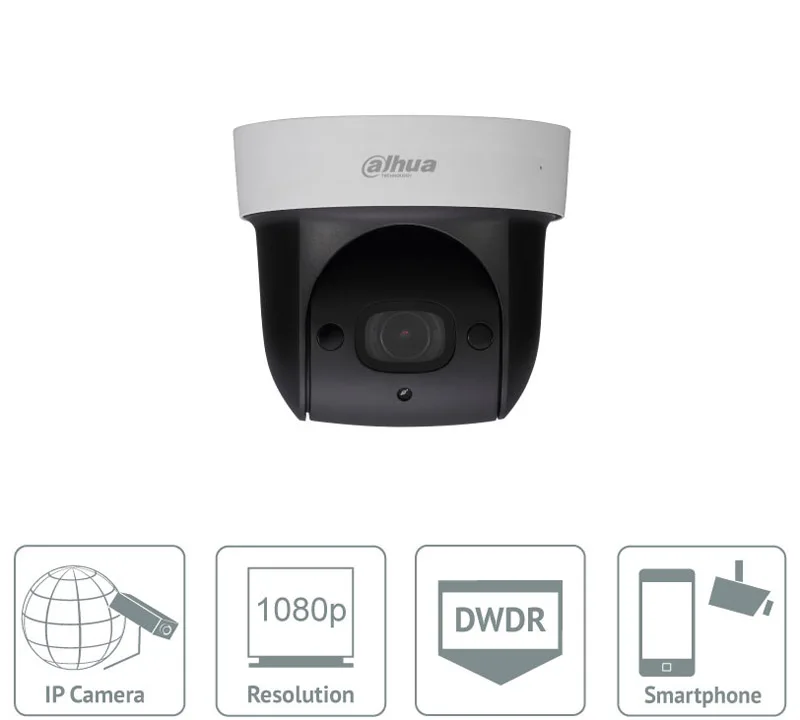

2MP 4x Starlight IR PTZ Wi-Fi Network Camera
> Powerful 4x optical zoom
> Support Starlight
> WDR, Day/Night(ICR), Ultra DNR
> Max. 25/30fps@1080P
> IVS
> Support Wi-Fi
> IR distance up to 30m

Camera | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Image Sensor | 1/2.8” STARVIS™ CMOS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Effective Pixels | 1920(H) x 1080(V), 2 Megapixels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RAM/ROM | 256M/128M | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Scanning System | Progressive | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Shutter Speed | 1/1s~1/30,000s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR Distance | Distance up to 30m (98ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR On/Off Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IR LEDs | 2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Lens | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focal Length | 2.7mm~11mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. Aperture | F1.6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Angle of View | H: 112.5° ~ 30° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Optical Zoom | 4x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Focus Control | Auto/Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Close Focus Distance | 100mm~ 1000mm | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
DORI Distance | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Detect | Observe | Recognize | Identify | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
120m(394ft) | 48m(157ft) | 24m(79ft) | 12m(39ft) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Pan/Tilt Range | Pan: 0° ~ 360° limited; Tilt: 0° ~ 90° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Manual Control Speed | Pan: 0.1° ~100° /s; Tilt: 0.1° ~60° /s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Preset Speed | Pan: 100° /s; Tilt: 60° /s | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Presets | 300 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
PTZ Mode | 5 Pattern, 8 Tour(up to 32 preset per tour), Auto Scan | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Speed Setup | Human-oriented focal Length/ speed adaptation | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power up Action | Auto restore to previous PTZ and lens status after power failure | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol | DH-SD | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Intelligence | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Event Trigger | Motion detection, Video tampering, Network disconnection, IP address conflict, Illegal access, Storage anomaly | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Auto Tracking | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IVS | Tripwire, Intrusion,Abandoned/Missing |
Advanced Intelligent Functions | Face Detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | H.265/H.264/MJPEG(Sub Stream) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Capability | 3 Streams | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 1080P(1920×1080)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Frame Rate | Main stream: 1080P/720P/D1 (1 ~ 25/30fps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub stream1: D1/CIF(1 ~ 25/30fps) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Sub stream2: 720P/D1/CIF (1 ~ 25/30fps) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate Control | CBR/VBR | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate | H.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Day/Night | Auto(ICR) / Color / B/W | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backlight Compensation | BLC / HLC / WDR (120dB) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gain Control | Auto / Manual | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Noise Reduction | Ultra DNR (2D/3D) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Motion Detection | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Region of Interest | support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electronic Image Stabilization (EIS) | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Defog | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Digital Zoom | 16x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Flip | 180° | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Privacy Masking | Up to 24 areas | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | G.711a/G.711mu/PCM/G.726/AAC/G722.1/G.729/MPEG2-Layer2 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ethernet | RJ-45 (10XBase-T/100Base-TX) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Wifi | Support | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Interoperability | ONVIF Profile S&G, API | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Streaming Method | Unicast / Multicast | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max. User Access | 20 users | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Edge Storage | NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Web Viewer | IE, Chrome, Firefox, Safari | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Management Software | Smart PSS, DSS, DMSS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone | IOS, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
Interface | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Interface | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio I/O | Built-in Mic | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm I/O | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Electrical | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC 12V/1.5A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 10W,13W (IR on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Environmental | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | -30°C ~ 60°C (-22°F ~ +140°F) / Less than 90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Ingress Protection | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Vandal Resistance | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Construction | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Casing | Metal | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

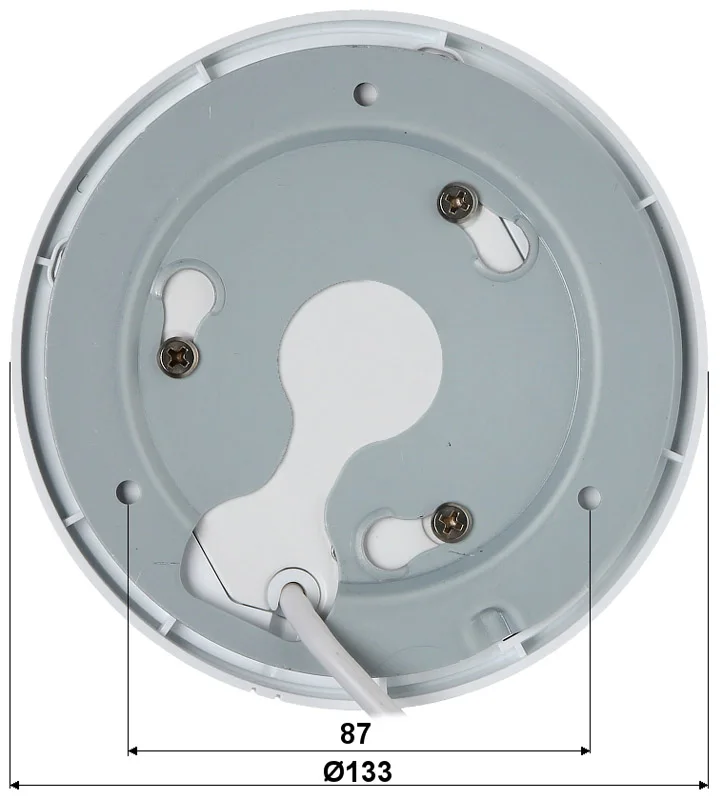

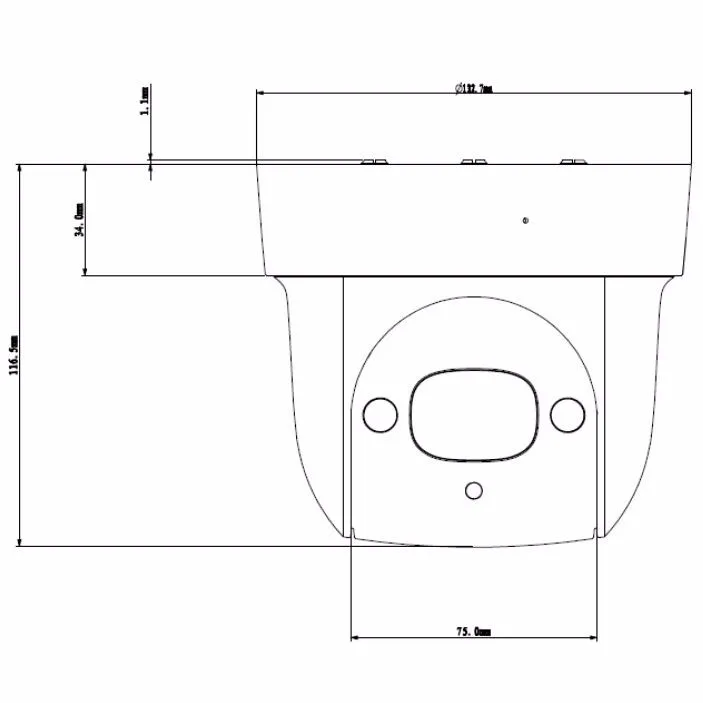

Dimensions | Φ132.7 (mm) x 117.9 (mm) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 0.95kg(2.09lb) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Gross Weight | 1kg(2.20lb) |



Destiny
The camera is designed for indoor and outdoor applications. The housing is equipped with a wall bracket for mounting the camera on a wall / facade, additional brackets that can be found in our offer allow ceiling mounting. The camera can be used for observation, e.g.
- warehouses,
- parking lots,
- warehouses,
- supermarkets,
- wholesalers,
- playing fields, etc.
The camera has a module responsible for image analysis, the available functions are:

- Triggering the alarm after crossing the designated line
- Triggering an alarm after entering a designated area / abandoning things
- Triggering an alarm after leaving a designated area
- Triggering the alarm after a sudden change of scene (camera rotation)
Image comparison
WDR function - Super wide, dynamic range
Area of interest (ROI)
The ROI function allows you to improve the quality of selected fragments of the image and allows you to limit the quality of the remaining fragments, which makes it possible to better use the computational power of the signal processor in the camera and reduce the requirements for network bandwidth.
