  • AHD, HD-CVI, HD-TVI, CVBS, TCP/IP DVR XVR5232AN-X 32 CHANNELS DAHUA
  • AHD, HD-CVI, HD-TVI, CVBS, TCP/IP DVR XVR5232AN-X 32 CHANNELS DAHUA
  • AHD, HD-CVI, HD-TVI, CVBS, TCP/IP DVR XVR5232AN-X 32 CHANNELS DAHUA

AHD, HD-CVI, HD-TVI, CVBS, TCP/IP DVR XVR5232AN-X 32 CHANNELS DAHUA

( 0 )
  • $300.00
  • $500.00
  • 40%OFF
Quantity Price
1+ $300.00
2+ $291.00
300 items available
buyer protection
30 Day Returns Guarantee
Full or partial refund if the item is not as described
Full refund for damaged items

  mutil language Dahua 16ch DVR XVR5108hs-4KL-X Penta-brid 4K H.265+ Supports HDCVI/AHD/TVI/CVBS/IP Digital Video Recorder



The XVR5108HS-4KL-X digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS interface is a professional device applicable in surveillance systems.

The menu options layout has been designed for all users, even beginners can easy navigate and change parameters in DVR settings without any problem.

dhi-xvr5104hs_d

> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 6 channels IP camera inputs, each channel up to 8MP; Max 24Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System




dhi-xvr5104hs_img1_d




 32 Channel Penta-brid 1080P Digital Video Recorder
> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
Max 32 channels IP camera inputs, each channel up to 6MP; Max 128Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System


Standard:AHDHD-CVIHD-TVICVBSTCP/IP

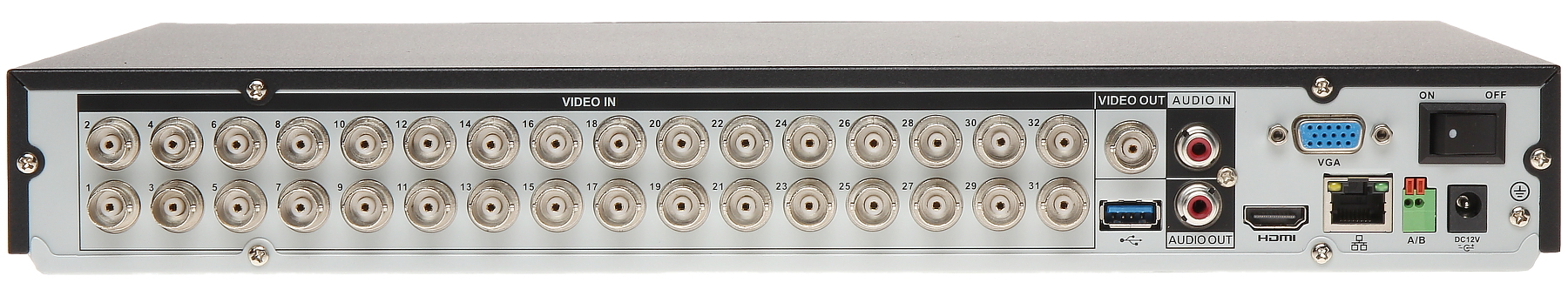

Video inputs:32 pcs BNC
Video outputs:
  • 1 pcs HDMI
  • 1 pcs VGA
Audio inputs:
  • 1 pcs CINCH,
  • 32 pcs BNC - Audio support via coaxial cable, HD-CVI only
Audio outputs:1 pcs CINCH
Image compression method:H.265 / H.265+ / H.264 / H.264+
Number of compression levels:
Image records resolutions:
  • AHD / HD-CVI / HD-TVI :
    4M-N - 1280 x 1440  ,
    1080p - 1920 x 1080, ,
    1080N - 960 x 1080
    720p - 1280 x 720

  • CVBS :
    960H - 960 x 576

  • IP :
    max. 6 Mpx - 3072 x 2048
Recording speed adjustment:Mpx IP @ 1 ... 25 fps
4M-N @ 1 ... 15 fps
1080p @ 1 ... 15 fps
1080N @ 1 ... 25 fps
720p @ 1 ... 25 fps
960H @ 1 ... 25 fps
for each channel
Operation modes:32 x  AHD / HD-CVI / HD-TVI / CVBS / IP
Recording modes:Manual, Motion Detection, Schedule
Supported hard drives:2  x 10 TB SATA
External storage devices backup:Save single frames and whole records from DVR drive to the USB drive
Searching and playback the records:Records searching: by time and events type. Records playback: forward, backward, fast, slow
Advanced searching (to the one second accuracy)
All channels synchronous playback, Smart Search function
Network functions:Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters
USB:
  • 1 pcs USB 2.0
  • 1 pcs USB 3.0
Mobile phones support:Port no.: 37777 or access by a cloud (P2P)
  • Android: Free application gDMSS Plus
  • iOS (iPhone): Free application iDMSS Plus

    See how to configure the P2P function in Dahua recorders and how to enable the mobile application
Alarm inputs / outputs:
PTZ control:IP Speed Dome Cameras
Control compatible with coax PTZ HD-CVI
RS-485 - PELCO-D/P
Motion Detection:Split the screen into zones : 22 x 18 motion zones
Main features:Intelligent Image Analysis : crossing the line (tripwire)intrusionabandoned/missing objectface detection
Color:Black
Mouse support:
IR remote controller in the set:
Power supply:12 V DC / 5 A (power adapter included)
Weight:1.96 kg
Dimensions:375  x 287  x 53 mm
Supported languages:Polish, English, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Hungarian, Italian
Country of origin:China
Manufacturer / Brand:DAHUA
Guarantee:3 years

Why Choose HDCVI (High Definition Composite Video Interface)?

1.HDCVI is a solution for megapixel high definition applications, featuring non-latent long-distance transmission at a lower cost. The technology offers two specifications: 1080p (1920×1080) and 720p (1280×720).

2.HDCVI is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.With no new cabling or IP hassle required,

HDCVI is one option for upgrading existing systems from standard definition to high definition, offering longer transmission via coaxial cable and lower total cost.

3.Transmitting data over 500m over a coaxial cable can be realized, depending on the cable selected. Cable 75-3 and 75-5 are recommended for transmissions within 500m, cable 75-5 and above for over 500m. Connectors and welding process also affect the transmission distance.

4.HDCVI composites video, audio, and control signals together and then transmits them over one coaxial cable, simplifying installation.
