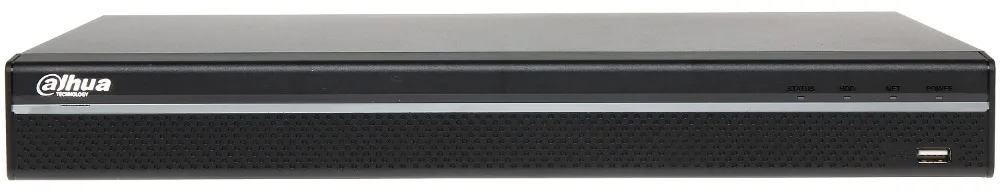

DH-XVR5216AN-X  video recorder 16ch 1080P Support HDCVI/ AHD/TVI/CVBS/IP Camera built-in 2 HDD .

The DHI-XVR5216AN-X digital recorder with AHD (Analog High Definition), HD-CVI (High Definition Composite Video Interface), HD-TVI (High Definition Transport Video Interface), TCP/IP and CVBS interface is a professional device applicable in surveillance systems.

The menu options layout has been designed for all users, even beginners can easy navigate and change parameters in DVR settings without any problem






16 Channel Penta-brid 1080P Digital Video Recorder

> H.265+/H.265 dual-stream video compression
> Supports HDCVI/AHD/TVI/CVBS/IP video inputs
> Max 24 channels IP camera inputs, each channel up to 6MP; Max 96Mbps Incoming Bandwidth
> Smart Search and Intelligent Video System

Video inputs:16 pcs BNC
Video outputs:
  • 1 pcs HDMI
  • 1 pcs VGA
Audio inputs:
  • 1 pcs CINCH,
  • 16 pcs BNC - Audio support via coaxial cable, HD-CVI only
Audio outputs:1 pcs CINCH
Image compression method:H.265 / H.265+ / H.264 / H.264+
Number of compression levels:
Image records resolutions:
  • AHD / HD-CVI / HD-TVI :
    4M-N - 1280 x 1440  ,
    1080p - 1920 x 1080  ,
    1080N - 960 x 1080
    720p - 1280 x 720
  • CVBS :
    960H - 960 x 576
  • IP :
    max. 6 Mpx - 3072 x 2048
Recording speed adjustment:Mpx IP @ 1 ... 25 fps
4M-N @ 1 ... 15 fps
1080p @ 1 ... 15 fps
1080N @ 1 ... 25 fps
720p @ 1 ... 25 fps
960H @ 1 ... 25 fps
for each channel
Operation modes:16 x  AHD / HD-CVI / HD-TVI / CVBS / IP + 8 x IP
Recording modes:Manual, Motion Detection, Schedule
Supported hard drives:2  x 10 TB SATA
External storage devices backup:Save single frames and whole records from DVR drive to the USB drive
Searching and playback the records:Records searching: by time and events type. Records playback: forward, backward, fast, slow
Advanced searching (to the one second accuracy)
All channels synchronous playback, Smart Search function
Network functions:Network Client Software and IE browser: live view, playback and backup of the records, partial configuration of the recorder parameters
  • 1 pcs USB 2.0
  • 1 pcs USB 3.0
Mobile phones support:Port no.: 37777 or access by a cloud (P2P)
  • Android: Free application gDMSS Plus
  • iOS (iPhone): Free application iDMSS Plus

    See how to configure the P2P function in Dahua recorders and how to enable the mobile application
Alarm inputs / outputs:
PTZ control:IP Speed Dome Cameras
Control compatible with coax PTZ HD-CVI
RS-485 - PELCO-D/P
Motion Detection:Split the screen into zones : 22 x 18 motion zones
Main features:Intelligent Image Analysis : crossing the line (tripwire)intrusionabandoned/missing objectface detection
Mouse support:
IR remote controller in the set:
Power supply:12 V DC / 4 A (power adapter included)
Weight:1.69 kg
Dimensions:375  x 287  x 53 mm
Supported languages:Polish, English, Czech, Danish, Finnish, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Romanian, Serbian, Slovak, Slovenian, Hungarian, Italian
Country of origin:China
Manufacturer / Brand:DAHUA
Guarantee:3 years
